PS
ACERETECH

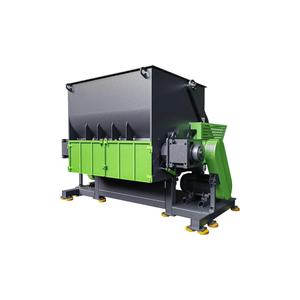

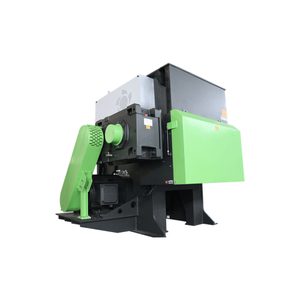

Tuv/BV Certification Recycle Plastic Pipe Crusher Shredder Machine
The main focus of PS shredders is to crush large diameter pipes or bundles of smaller pipes and profiles made of HDPE, PP and various PVC.In addition, the machine can also be used to recycle other plastic parts, such as large pieces, stacked bins and pallets.Combined with other ACERETECH size reduction equipment, such as pelletizer and shredder, we are able to offer complete turnkey recycling solutions.The main focus of PS shredders is to crush large diameter pipes or bundles of smaller pipes and profiles made of HDPE, PP and various PVC.In addition, the machine can also be used to recycle other plastic parts, such as large pieces, stacked bins and pallets.Combined with other ACERETECH size reduction equipment, such as pelletizer and shredder, we are able to offer complete turnkey recycling solutions.
The PS shredders are the worlds first single shaft shredders able to handle large diameter pipes up to 1200 mm without the need for pre cutting. Since their introduction they became the popular standard for pipe shredding and are used by the leading pipe manufacturers all over the world. More than 100 installations demonstrate our technological leadership in this industry and continuing innovation based on market demands and customer feedback. Depending on the pipe diameter the PS rotor diameter and width range from 800 to 1500 mm. The standard hopper fits all pipe lengths of up to 3-6m. The combination of advanced controls, low rotor speed and smooth hydraulics create a reliable and easy to use system.
Final Products
Tuv/BV Certification Recycle Plastic Pipe Crusher Shredder Machine
The main focus of PS shredders is to crush large diameter pipes or bundles of smaller pipes and profiles made of HDPE, PP and various PVC.In addition, the machine can also be used to recycle other plastic parts, such as large pieces, stacked bins and pallets.Combined with other ACERETECH size reduction equipment, such as pelletizer and shredder, we are able to offer complete turnkey recycling solutions.The main focus of PS shredders is to crush large diameter pipes or bundles of smaller pipes and profiles made of HDPE, PP and various PVC.In addition, the machine can also be used to recycle other plastic parts, such as large pieces, stacked bins and pallets.Combined with other ACERETECH size reduction equipment, such as pelletizer and shredder, we are able to offer complete turnkey recycling solutions.
The PS shredders are the worlds first single shaft shredders able to handle large diameter pipes up to 1200 mm without the need for pre cutting. Since their introduction they became the popular standard for pipe shredding and are used by the leading pipe manufacturers all over the world. More than 100 installations demonstrate our technological leadership in this industry and continuing innovation based on market demands and customer feedback. Depending on the pipe diameter the PS rotor diameter and width range from 800 to 1500 mm. The standard hopper fits all pipe lengths of up to 3-6m. The combination of advanced controls, low rotor speed and smooth hydraulics create a reliable and easy to use system.
Final Products
Product parameters
PS Series | ||||
Item | Unit | PS800 | PS1000 | PS1500 |
Feed opening | mm | 3860*700 | 6700*870 | 6700*1300 |
Rotor diameter | mm | 800 | 980 | 1430 |
Rotor speed | rpm | 40 | 36 | 23 |
Motor power | kw | 2*37 | 2*45 | 2*55 |
Number of rotor knives | pcs | 60 | 108 | 204 |
Number of stator knives | pcs | 3 | 4 | 5 |
Hydraulic feeding ram | kw | 11 | 15 | 15 |
Machine weight | ton | 11 | 20 | 25 |
Chamber size | mm | 3500*630 | 6000*800 | 6000*1200 |
Product parameters
PS Series | ||||
Item | Unit | PS800 | PS1000 | PS1500 |
Feed opening | mm | 3860*700 | 6700*870 | 6700*1300 |
Rotor diameter | mm | 800 | 980 | 1430 |
Rotor speed | rpm | 40 | 36 | 23 |
Motor power | kw | 2*37 | 2*45 | 2*55 |
Number of rotor knives | pcs | 60 | 108 | 204 |
Number of stator knives | pcs | 3 | 4 | 5 |
Hydraulic feeding ram | kw | 11 | 15 | 15 |
Machine weight | ton | 11 | 20 | 25 |
Chamber size | mm | 3500*630 | 6000*800 | 6000*1200 |
SHREDDER SPINDLE
>>> When the equipment tears high strength materials or working for a long time, the spindle integral forging will not break and deformation.
>>> Lathe, CNC machining center and other professional processing equipment manufacturing is completed, to ensure that the overall error of the spindle is not more than 0.05mm, to ensure the long-term stable operation of the equipment, and ensure that the distance between the fixed tool and the moving tool can be adjusted to at least 0.5mm.
SHREDDER GEAR BOX
>>> Integrated box design, stronger mechanism, stronger output shaft and bearing design, longer service life and greater torque.
>>> Flexible cooling mode to meet thermal power needs.
>>> At the same time, the output shaft adopts double oil seal design, greatly reducing the risk of oil leakage.
MOTOR OF SHREDDER
>>> The main motor adopts Weg / Siemens brand motor, with stable output and reliable quality.
HYDRAULIC STATION
>>> The motor, oil pump and valve group of the hydraulic station are all made of Taiwan brand, with reliable quality. The system is equipped with or150 water cooler, which can effectively control the oil temperature below 55 ° C.
CHAMBER OF SHREDDER
>>> Chamer size can up to 6000*1200mm, which can handle diamter 1200mm, length 6m big pipes, pipes can automatic feeding into chamber through forklift or crane.
CONTROL SYSTEM OF SHREDDER
>>> The electrical system adopts microcomputer PLC programming control and whole process automation. After commissioning, the operator only needs to press start and stop. Save labor costs and ensure the safety of the operating environment.
SHREDDER SPINDLE
>>> When the equipment tears high strength materials or working for a long time, the spindle integral forging will not break and deformation.
>>> Lathe, CNC machining center and other professional processing equipment manufacturing is completed, to ensure that the overall error of the spindle is not more than 0.05mm, to ensure the long-term stable operation of the equipment, and ensure that the distance between the fixed tool and the moving tool can be adjusted to at least 0.5mm.
SHREDDER GEAR BOX
>>> Integrated box design, stronger mechanism, stronger output shaft and bearing design, longer service life and greater torque.
>>> Flexible cooling mode to meet thermal power needs.
>>> At the same time, the output shaft adopts double oil seal design, greatly reducing the risk of oil leakage.
MOTOR OF SHREDDER
>>> The main motor adopts Weg / Siemens brand motor, with stable output and reliable quality.
HYDRAULIC STATION
>>> The motor, oil pump and valve group of the hydraulic station are all made of Taiwan brand, with reliable quality. The system is equipped with or150 water cooler, which can effectively control the oil temperature below 55 ° C.
CHAMBER OF SHREDDER
>>> Chamer size can up to 6000*1200mm, which can handle diamter 1200mm, length 6m big pipes, pipes can automatic feeding into chamber through forklift or crane.
CONTROL SYSTEM OF SHREDDER
>>> The electrical system adopts microcomputer PLC programming control and whole process automation. After commissioning, the operator only needs to press start and stop. Save labor costs and ensure the safety of the operating environment.
