Aceretech Plastic waste Recycling Washing Line Machine

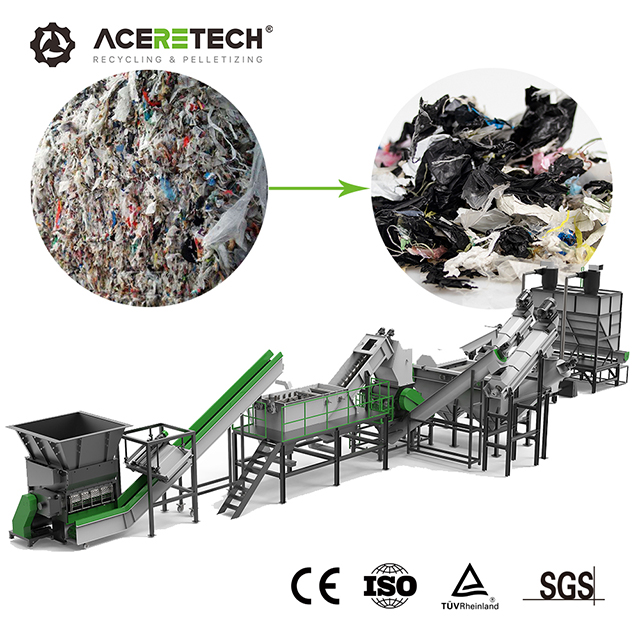

PE FILM/BAG/FLAKES RECYCLING LINE
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP-LDPE materials. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
According to different raw materials, Aceretech PE washing line is divided into the following two categories:
Agricultural film, plastic film, greenhouse film, drip irrigation belt, etc., film recycling and washing line
HDPE chemical barrels, oil pots, etc., hard sundries recycling washing line
Unit energy consumption | |
Content | Average energy consumption per ton of bottle |
Electricity | 50-80KW |
Water | 0.8-1.5T |
Compressed air | 0.5-1m 3 |
Steam (optional) | 0-100KG |
Detergent (optional) | 0-3KG |
PE Film Washing line | ||||||
Item | unit | AWS-HDPE05 | AWS-HDPE10 | AWS-HDPE20 | AWS-HDPE30 | AWS-HDPE45 |
Capacity | Kg | 500 | 1000 | 2000 | 3000 | 4000 |
Power installed | Kw | 130 | 150 | 190 | 250 | 400 |
Required Area | m² | 100 | 150 | 260 | 380 | 450 |
Manpower | PCS | 5 | 7 | 9 | 10 | 12 |
Water supply | m3h | 2 | 4 | 6 | 8 | 10 |
PET BOTTLES RECYCLNG AND WASHINGLINE
PET waste bottles recycling and washing system is a complete solution designed for bottles, such as water bottles, cola bottles, etc.
Label-removing,crushing,washing,drying and packing;it is the perfect system to process the waste bottles into PET flakes, which can present high quality performance of recycled PET flakes.
After years of technology and process experience precipitation, ACERETECH has a variety of different solutions to present, according to the customers' demands.Following the modular design principle,ACERETECH can freely combine each standard module to provide customers the specialized solutions, which key conception is: Making waste plastic recycling easier and making waste plastic more valuable.
According to the final usage of PET flakes,ACERETECH's PET recycling and washing system divides into 4 categories;
* Bottle to bottle grade, PET bottles recycling and washing line
* POY grade, PET bottles recycling and washing line
* Mono-Filament, High-Quality PSF grade, PET bottes recing and washing line
* Regular grade,such as strapping,brusher making, etc.,
PETFlake Quality Reference Table
Moisture Content | <0.9% | Variegated tablets | <30ppm |
Label | <20ppm | Metal | <20ppm |
pvc | <50ppm | Tptal imprity | <100pp |
Glue | <10ppm | Flake size | 12mm,14mm(or according to customer needs) |
PP/PE | <20ppm | PH | Neutral |
PET Bottles with flakes Washing line | ||||
Item | unit | AWS-PET500 | AWS-PET1000 | AWS-PET2000 |
Capacity | Kg | 500 | 1000 | 2000 |
Power installed | Kw | 230 | 374 | 585 |
Required Area | m² | 500 | 750 | 900 |
Manpower | PCS | 5 | 7 | 9 |
Steam Volume | mm | 300 | 500 | 1000 |
Water supply | m3h | 2 | 4 | 6 |

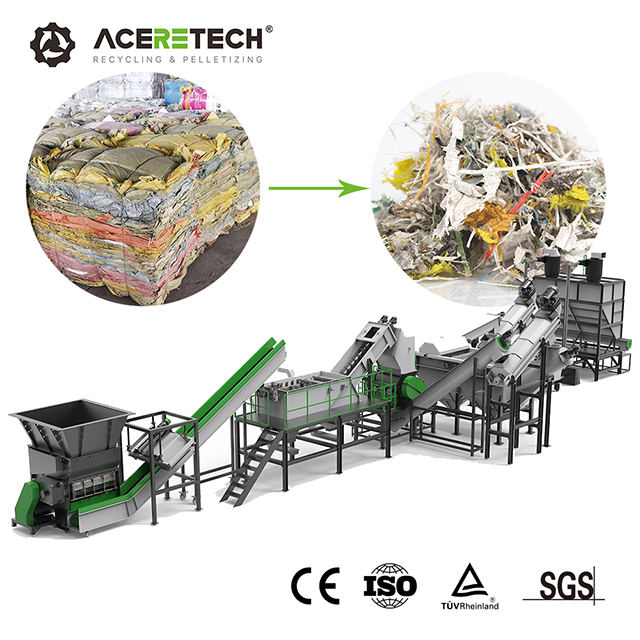

PP WOVEN BAG RECYCLING LINE
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of PP materials. It can realize a cleaning and recycling line and handle hard materials at the same time..
PP woven bags and film are also the most valuable secondary resources in the recycling market. It is a flexible packaging container with the advantages of moisture-proof, dust-proof, strong, safe and etc. It is used for packaging and transportation of various dry products or materials.
Device parameters | |||
Size | Capacity | Motor Power | Equipment footprint |
AWS PP BAGS 05 | 500kg/h | 560KW | 150m2 |
AWS PP BAGS 10 | 1000kg/h | 680KW | 300m2 |
AWS PP BAGS 20 | 2000kg/h | 750KW | 450m2 |
