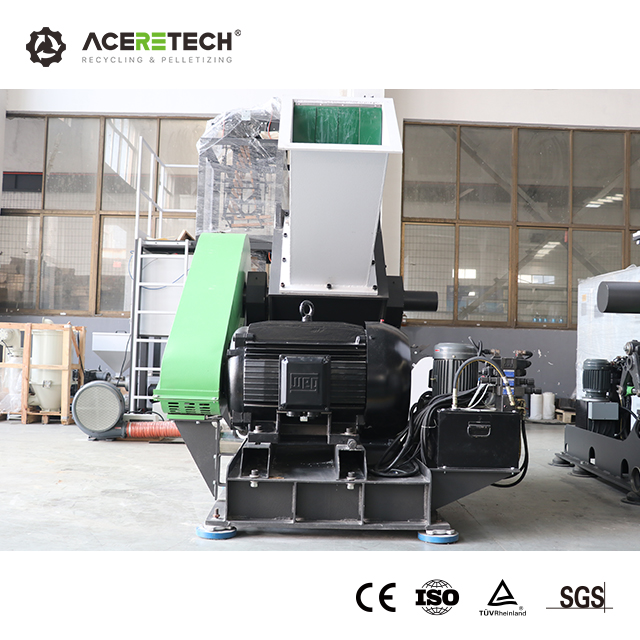

GP Series Recycled Plastic Bottle Film Pipe Crusher For Reduce Manufacturing Cost
Production Introduction
The GP series of pipe and profile granulators are available with rotor widths up to 700mm and diameters ranging from 560 to 700mm. The fully welded heavy-duty steel cutting chamber is inclined and equipped with an extension hopper for easy part feeding. The standard V-cut produces a high quality regrind with a very low percentage of fines in the output material. Other standard features include hydraulically opened hoppers for the outer bearings to reduce the risk of contamination.The GP series of pipe and profile granulators are available with rotor widths up to 700mm and diameters ranging from 560 to 700mm. The fully welded heavy-duty steel cutting chamber is tilted and equipped with an extension hopper to facilitate part feeding. The standard V-cut produces high quality regrind with a very low percentage of fines in the output material. Other standard features include a hydraulic opening hopper for the outer bearing, reducing the risk of contamination.
Applications
Conventional granulators have substantial problems handling long pipes and profiles.To feed large and bulky parts in most cases cavities or platforms are needed.Therefore ACERETECH developed the GP range. Thanks to the almost level feeding hopper, long pieces can be fed easily. While the machine is operating there is no risk of blocking, in case of congestion no more material will be accepted by the machine until the grinding chamber is empty and the machine will accept material again, and work continues.
Final Products
Product Paramenters
Technical specification | GP600/500 | GP560/700 | GP560/1000 | GP700/1400 |
Machine Weight(KG) | 4100 | 5000 | 6400 | 10600 |
Machine dimension（mm) | 2250*1350*1620 | 2400*1800*1750 | 2400*2050*1750 | 2480*2400*1980 |
Chamber size(mm) | 516*498 | 716*650 | 985*650 | 1400*700 |
Power(kw) | 37 | 55 | 75 | 110 |
Rotoary blades quantity | 5*2 | 5*2 | 5*2 | 5*3 |
Stator blades quantity | 2 | 2 | 2 | 2 |
Rotor diameter | 600 | 560 | 560 | 700 |
Rotor speed | 560 | 470 | 470 | 410 |
Hydraulic power(KW) | 1.5 | 1.5 | 1.5 | 1.5 |
Product Advantages
The GP Series Recycled Plastic Bottle Film Pipe Crusher For Reduce Manufacturing Cost has a small footprint, is easy to operate, and is suitable for plastic pipes, a class of raw materials. Secondly, it has high working efficiency, which can save a lot of time for customers. And, it can better reduce the environmental pollution.
Product Service & Support
We offer the following support and services for this shredder. First of all, we provide local after-sales service for this machine, after the customer receives the goods, the failure occurs in the process of running the machine, you can contact us at the first time, and we will provide the solution when we see it, or, we will send our after-sales service team for local after-sales service. In addition, customers have other questions can also feel free to leave us a message, we will also be the first time to give you a reply.
Conclusion
The GP Series Recycled Plastic Bottle Film Pipe Crusher For Reduce Manufacturing Cost is available with rotor widths up to 700mm and diameters ranging from 560 to 700mm.It is specially designed for crushing PE, PP, PVC pipes with diameter from 16mm to 450mm, wider doors and sheets.Conveyor belt, ventilator, storage silo and dust collecting system are available for larger output.In addition, we provide local after-sales service for our customers, in case of machine failure, customers can contact us and we provide solutions.
