PM300
ACERETECH

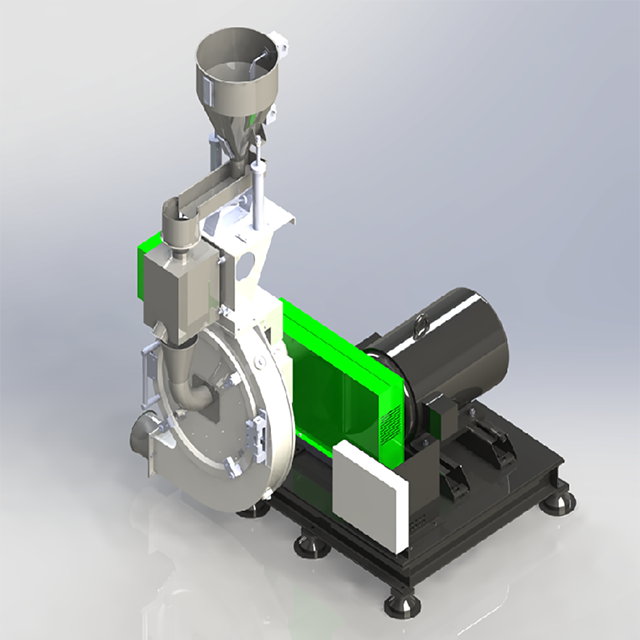

PM300 CE/ISO/SGS Certification Pulverizer Machine with European Appliances
Applications
The pulverizer is suitable for the pulverization of semi-rigid, brittle and impact resistant materials that require powdered products.
Particles with a size of 6-8 mm are fed through a vibrating screen into a rotating high-speed sawtooth disc to produce a powder product in the desired 300-1000 micron range, with the final size determined by adjustable disc spacing. Typically used for shredding LDPE, HDPE, UPVC, PC and various other plastics.
Design
The PM300 pulverizer series are ultra-high output units that can be equipped with automatic temperature control. The material to be pulverized is fed centrally between fixed and high-speed rotating pulverizing discs, which have a centrifugal effect, allowing the material to pass through the processing zone and then be pneumatically discharged from the machine.
Advantages
* Long service life of discs between regrindings.
* Replace and adjust discs quickly and easily.
* Low residence time means low thermal stress on the process material.
* High throughput capabilities.
* Cost effective operation.
Final Products
Technical Features
* Dosing channel/Vibratory feeder
* The channel width is 100 - 250mm, and the storage container is appr. 50-100 lit.
* The feeding is regulated and consumed by the high current controller monitoring the pulverizer motor, including the mounting bracket and control device.
Pulverizer Housing
* Disc pulverizer with a fixed and a high-speed toothed disc with precision bearings.
* Material is fed through the opening in the center of the fixed disc.
* The size of the particles depends on the surface structure of the teeth and the adjustable distance between the tooth discs. The cutting clearance can be checked through the inspection hole in the housing. This makes it easy to adjust from the outside of the device using a feeler gauge. The device operates without a screen.
* The machine housing is made of fracture resistant welded steel. The hinged housing door with fixed toothed disc opens to the side for cleaning and replacing the toothed disc.
* The grinding chamber is well designed with a small cross-section and a flat, almost vertically mounted grinding disc.
* The material is clamped and reduced immediately after entering the grinding chamber.
Pulverizer Discs
* Specially designed discs and high-speed peripheral running speed ensure efficient impact reduction under low power requirements.
* Pulverizer disc diameter 300 m
Temperature Control
The enhanced cooling device for automatically controlling the temperature includes a nozzle for spraying in cooling water, regulating control devices, solenoid valves, thermostats, an automatic control device and a material feeding switch.
Drive And Mounting Frame
A flat steel structure is used to install the pulverizer and suction box. The drive motor includes "V" belt drive and belt guard. The frame is equipped with pre installed anti vibration pads.
Safety Devices
Integrated operational safety device to prevent entry until the rotor is completely stationary.
Product Parameters
| PM300 Series Pulverizer Machine | |
| Raw material | H-PVC-Profile ,H-PVC-Pine ,LDPE(MFI70) and etc. |
| Final product & capacity | 120~200kg/h, depends on condition of client's material. |
| Electric current | 3×380V, 50Hz; control current 220V, 50Hz |
| Model | PM300 |
| Profile- H-PVC | 200 kg/h |
| Pipe- H-PVC | 250 kg/h |
| PE | 120 kg/h |
| Rotor speed | 9000 rmp |
| Disc diameter | 300 mm |
| Tooth grooves | 2.62 |
| Drive motor | 22 kw |
| Blower capacity Q | 3500 cbm/h |
| Blower motor N | 7.5 kw |
